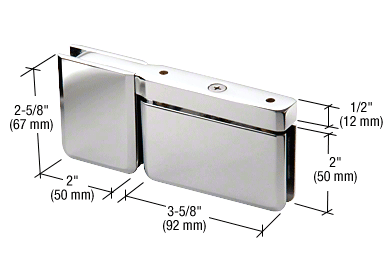

Junior Prima 01 Series Top or Bottom Mount Hinge

Catalog Number: JRPPH01

Top or Bottom Mount For Use with 6 mm Glass

Available in Several Beautiful Finishes

3 Year Warranty

U.S. Patent 5297313

Advantages of Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The JRPPH01 Model is adaptable to our Junior Header System. (must order JRHAB01 Junior Adaptor Block separately)

SENIOR PRIMA: Using two hinges with 12 mm tempered safety glass, the hinge will hold up to 66 kg with a maximum door width of 914 mm.

JUNIOR PRIMA: Using two hinges with 6 mm tempered safety glass, the hinge will hold up to 28 kg with a maximum door width of 711 mm.

SPECIFICATIONS:

Glass Thickness:

    Senior Prima 12 mm Tempered Safety Glass

    Junior Prima 6 mm Tempered Safety Glass

Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.

Construction: Solid Brass

Hinge Swings: Full Rotation

Closing Type: Self-Centering when within 15 Degree of closed position.

Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions Senior and Junior Prima Hinges are patented (Patent Number 5297313).
